generateCytosineReport

This function counts methylated and unmethylated DNA bases taking into the account average methylation level of the entire sequence read.

Usage

generateCytosineReport(
  bam,
  report.file = NULL,
  cytosine.context = c("CG", "CHG", "CHH", "CxG", "CX"),
  filter.reads = TRUE,
  min.context.sites = 0,
  max.outofcontext.beta = 0.1,
  threshold.reads = TRUE,
  min.context.beta = 0.5,
  report.context = cytosine.context,
  ...,
  gzip = FALSE,
  verbose = TRUE
)

Arguments

bam

BAM file location string OR preprocessed output of preprocessBam function. Read more about BAM file requirements and BAM preprocessing at preprocessBam.

report.file

file location string to write the cytosine report. If NULL (the default) then report is returned as a data.table object.

cytosine.context

string defining cytosine methylation context used for filtering and/or thresholding the reads:

"CG" (the default) – within-the-context: CpG cytosines (called as zZ), out-of-context: all the other cytosines (hHxX)
"CHG" – within-the-context: CHG cytosines (xX), out-of-context: hHzZ
"CHH" – within-the-context: CHH cytosines (hH), out-of-context: xXzZ
"CxG" – within-the-context: CG and CHG cytosines (zZxX), out-of-context: CHH cytosines (hH)
"CX" – all cytosines are considered within-the-context, this effectively results in no thresholding

filter.reads

boolean defining if sequence reads with too few context bases or too high out-of-context cytosine methylation should be filtered out (e.g., reads resulting from incompletely bisulfite-converted templates). Default: TRUE. Filtering is strongly recommended for short-read sequencing (bisulfite or enzymatic) because it removes reads from incompletely converted DNA molecules.

min.context.sites

non-negative integer for minimum number of cytosines within the `cytosine.context` (default: 0, i.e., all reads will satisfy this criterion). When `min.context.sites`>0, reads containing fewer within-the-context cytosines will not be thresholded and will be ignored in further computations. This option has no effect when read filtering is disabled.

max.outofcontext.beta

real number in the range [0;1] (default: 0.1). Reads with average beta value for out-of-context cytosines above this threshold will not be thresholded and will be ignored in further computations. This option has no effect when read filtering is disabled.

threshold.reads

boolean defining if sequence reads (read pairs) should be thresholded before counting methylated cytosines (default: TRUE). Disabling thresholding (together with filtering) makes the report virtually indistinguishable from the ones generated by other software, such as Bismark or Illumina DRAGEN Bio IT Platform. Thresholding is not recommended for long-read sequencing data because long reads might cover multiple regions with very different cytosine methylation.

min.context.beta

real number in the range [0;1] (default: 0.5). Reads with average beta value for within-the-context cytosines below this threshold are considered completely unmethylated (all C are counted as T). This option has no effect when read thresholding is disabled.

report.context

string defining cytosine methylation context to report (default: value of `cytosine.context`).

...

other parameters to pass to the preprocessBam function. Options have no effect if preprocessed BAM data was supplied as an input.

gzip

boolean to compress the report (default: FALSE).

verbose

boolean to report progress and timings (default: TRUE).

Value

data.table object containing cytosine report in Bismark-like format or NULL if report.file was specified. The report columns are:

rname — reference sequence name (as in BAM)
strand — strand
pos — cytosine position
context — methylation context
meth — number of methylated cytosines
unmeth — number of unmethylated cytosines

Details

The function reports cytosine methylation information using BAM file or data as an input. In contrast to the other currently available software, reads (for paired-end sequencing alignment files - read pairs as a single entity) can be thresholded by their average methylation level before counting methylated bases, effectively resulting in hypermethylated variant epiallele frequency (VEF) being reported instead of beta value. The function's logic is explained below.

NB: you can modify and/or run this example – see Examples section at the bottom of this page.

Let's suppose we have a BAM file with four reads, all mapped to the "+" strand of chromosome 1, positions 1-16. Assuming the following values for the filtering and thresholding parameters (cytosine.context = "CG", filter.reads=TRUE, min.context.sites = 2, max.outofcontext.beta = 0.1, threshold.reads = TRUE, min.context.beta = 0.5), the input and results will look as following:

methylation string	filter	threshold	explained	methylation reported
...Z..x+.h..x..h.	excluded	<NA>	min.context.sites < 2 (only one zZ base)	all cytosines unmethylated
...Z..z.h..x..h.	pass	above	pass all criteria	only C4 (Z at position 4) is methylated
...Z..z.h..X..h.	excluded	<NA>	max.outofcontext.beta > 0.1 (1XH / 3xXhH = 0.33)	read excluded from reporting
...Z..z.h..z-.h.	pass	below	min.context.beta < 0.5 (1Z / 3zZ = 0.33)	all cytosines unmethylated

Since the reads number one and three are filtered out, and only the second read will satisfy the thresholding criteria, the following CX report will be produced (given that all reads map to chr1:+:1-16):

rname	strand	pos	context	meth	unmeth
chr1	+	4	CG	1	1
chr1	+	7	CG	0	2
chr1	+	9	CHH	0	2
chr1	+	15	CHH	0	2

(Disclaimer: the cytosine base at position 12 is absent in the report, because its context cannot be determined based on two reads that passed the filtering: in one of the reads this base is in CG context and in the other in CHG context. Since none of these contexts is present in more than a half of the reads, the base is skipped.)

With the read filtering and thresholding disabled (filter.reads=FALSE, threshold.reads = FALSE) all reads will be included and all methylated bases will retain their status, so the CX report will be very similar (nearly identical) to the reports produced by other methylation callers (such as Bismark or Illumina DRAGEN Bio IT Platform):

rname	strand	pos	context	meth	unmeth
chr1	+	4	CG	4	0
chr1	+	7	CG	0	3
chr1	+	9	CHH	0	4
chr1	+	12	CHG	1	2
chr1	+	15	CHH	0	4

Other notes:

Methylation string bases in unknown context ("uU") are simply ignored, which, to the best of our knowledge, is consistent with the behaviour of other tools.

In order to mitigate the effect of sequencing errors (leading to rare variations in the methylation context, as in reads 1 and 4 above), the context present in more than 50% of the reads is assumed to be correct, while all bases at the same position but having other methylation context are simply ignored. This allows reports to be prepared without using the reference genome sequence.

The downside of not using the reference genome sequence is the inability to determine the actual sequence of triplet for every base in the cytosine report. Therefore this sequence is not reported, and this won't change until such information will be considered as worth adding.

Please also note, that read thresholding by an average methylation level (as explained above) makes little sense for long-read sequencing alignments, as such reads can cover multiple regions with very different DNA methylation properties.

Examples

  capture.bam <- system.file("extdata", "capture.bam", package="epialleleR")

  # CpG report with filtering and thresholding
  cg.report <- generateCytosineReport(capture.bam)
#> Checking BAM file:
#> short-read, paired-end, name-sorted alignment detected
#> Reading paired-end BAM file
#> [0.012s]
#> Filtering and thresholding reads
#> [0.001s]
#> Preparing cytosine report
#> [0.010s]

  # CX report with filtering but without thresholding
  cx.report <- generateCytosineReport(capture.bam, threshold.reads=FALSE,
               report.context="CX")
#> Checking BAM file:
#> short-read, paired-end, name-sorted alignment detected
#> Reading paired-end BAM file
#> [0.013s]
#> Filtering reads
#> [0.002s]
#> Preparing cytosine report
#> [0.012s]

  # Long-read sequencing with both filtering and thresholding disabled
  long.bam <- system.file("extdata", "longread.bam", package="epialleleR")
  long.data <- preprocessBam(bam=long.bam, min.mapq=30, min.baseq=20,
                             min.prob=178)
#> Checking BAM file:
#> long-read, single-end, unsorted alignment detected
#> Reading single-end BAM file
#> [0.005s]
  cg.report <- generateCytosineReport(bam=long.data, filter.reads=FALSE,
                                      threshold.reads=FALSE)
#> Skipping filtering/thresholding
#> [0.000s]
#> Preparing cytosine report
#> [0.026s]

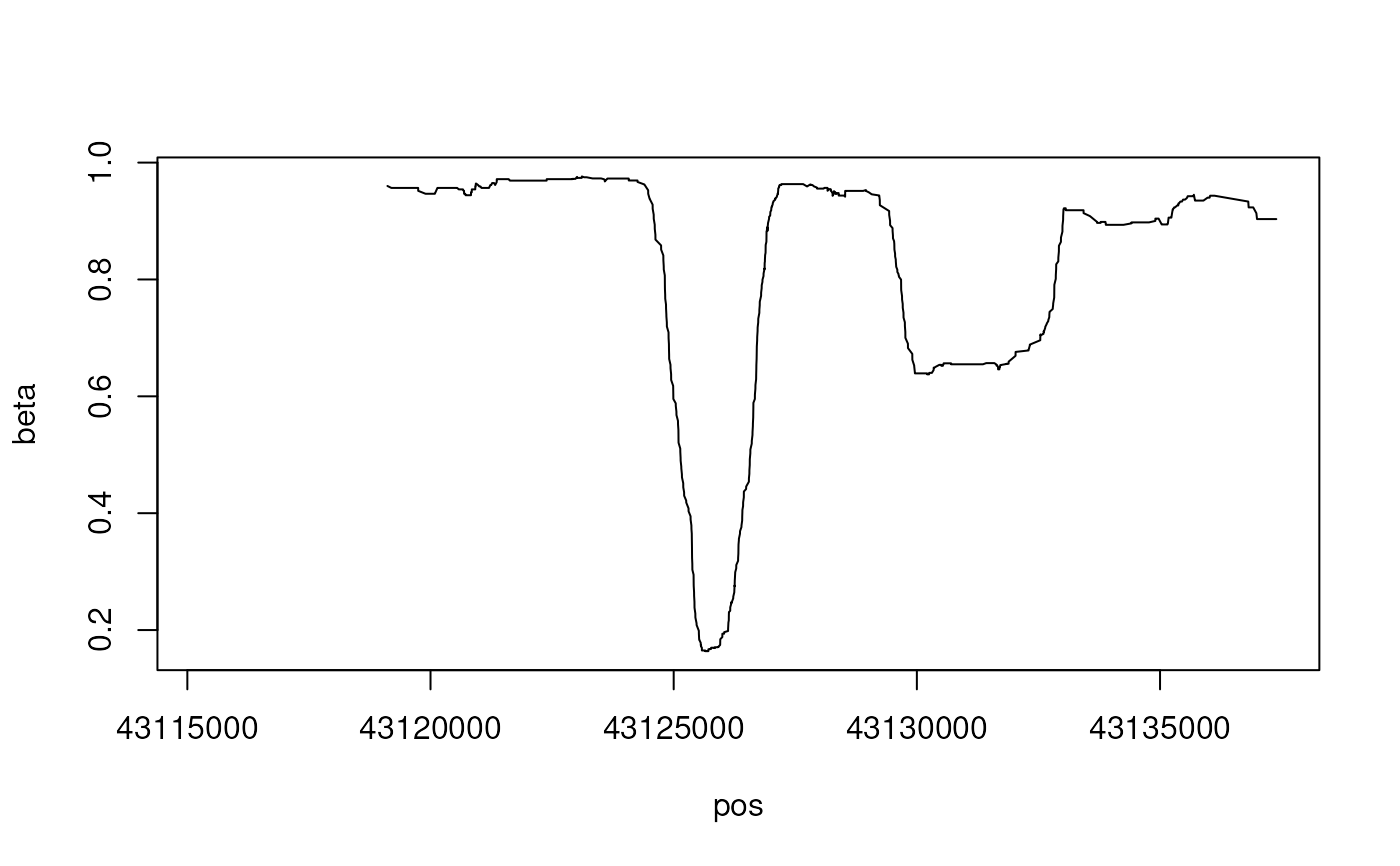

  plot(cg.report[, .(pos, beta=data.table::frollmean(meth/(meth+unmeth), 100))], type="l")


  # toy example from the description
  temp.bam <- tempfile(fileext=".bam")
  temp.bed <- as("chr1:1-100", "GRanges")
  simulateBam(output.bam.file=temp.bam, rname="chr1", XG="CT",
              seq=c("AGACGTTAGTAATAGTA", "AAACGTTGTAATAGTA",
                    "AGACGTTGTAACAGTA",  "AAACGTTGTAATGTA"),
              XM=c( "...Z..x+.h..x..h.", "...Z..z.h..x..h.",
                    "...Z..z.h..X..h.",  "...Z..z.h..z.h."),
              cigar=c("7M1I9M", "16M", "16M", "12M1D3M"))
#> Writing sample BAM
#> [0.002s]
#> [1] 4
  # with read filtering and thresholding (default)
  generateCytosineReport(bam=temp.bam, report.context="CX")
#> Checking BAM file:
#> short-read, single-end, unsorted alignment detected
#> Reading single-end BAM file
#> [0.001s]
#> Filtering and thresholding reads
#> [0.000s]
#> Preparing cytosine report
#> [0.000s]
#>     rname strand   pos context  meth unmeth
#>    <fctr> <fctr> <int>  <fctr> <int>  <int>
#> 1:   chr1      +     4      CG     2      1
#> 2:   chr1      +     7      CG     0      2
#> 3:   chr1      +     9     CHH     0      3
#> 4:   chr1      +    12     CHG     0      2
#> 5:   chr1      +    15     CHH     0      3
  # with read filtering (nondefault min.context.sites) and thresholding
  generateCytosineReport(bam=temp.bam, report.context="CX",
                         min.context.sites=2)
#> Checking BAM file:
#> short-read, single-end, unsorted alignment detected
#> Reading single-end BAM file
#> [0.001s]
#> Filtering and thresholding reads
#> [0.000s]
#> Preparing cytosine report
#> [0.000s]
#>     rname strand   pos context  meth unmeth
#>    <fctr> <fctr> <int>  <fctr> <int>  <int>
#> 1:   chr1      +     4      CG     1      1
#> 2:   chr1      +     7      CG     0      2
#> 3:   chr1      +     9     CHH     0      2
#> 4:   chr1      +    15     CHH     0      2
  # without read filtering
  generateCytosineReport(bam=temp.bam, report.context="CX",
                         filter.reads=FALSE)
#> Checking BAM file:
#> short-read, single-end, unsorted alignment detected
#> Reading single-end BAM file
#> [0.002s]
#> Thresholding reads
#> [0.000s]
#> Preparing cytosine report
#> [0.001s]
#>     rname strand   pos context  meth unmeth
#>    <fctr> <fctr> <int>  <fctr> <int>  <int>
#> 1:   chr1      +     4      CG     3      1
#> 2:   chr1      +     7      CG     0      3
#> 3:   chr1      +     9     CHH     0      4
#> 4:   chr1      +    12     CHG     1      2
#> 5:   chr1      +    15     CHH     0      4
  # without read thresholding
  generateCytosineReport(bam=temp.bam, report.context="CX",
                         threshold.reads=FALSE)
#> Checking BAM file:
#> short-read, single-end, unsorted alignment detected
#> Reading single-end BAM file
#> [0.002s]
#> Filtering reads
#> [0.000s]
#> Preparing cytosine report
#> [0.001s]
#>     rname strand   pos context  meth unmeth
#>    <fctr> <fctr> <int>  <fctr> <int>  <int>
#> 1:   chr1      +     4      CG     3      0
#> 2:   chr1      +     7      CG     0      2
#> 3:   chr1      +     9     CHH     0      3
#> 4:   chr1      +    12     CHG     0      2
#> 5:   chr1      +    15     CHH     0      3
  # both read filtering and thresholding disabled = similar to other software
  generateCytosineReport(bam=temp.bam, report.context="CX",
                         filter.reads=FALSE, threshold.reads=FALSE)
#> Checking BAM file:
#> short-read, single-end, unsorted alignment detected
#> Reading single-end BAM file
#> [0.002s]
#> Skipping filtering/thresholding
#> [0.000s]
#> Preparing cytosine report
#> [0.001s]
#>     rname strand   pos context  meth unmeth
#>    <fctr> <fctr> <int>  <fctr> <int>  <int>
#> 1:   chr1      +     4      CG     4      0
#> 2:   chr1      +     7      CG     0      3
#> 3:   chr1      +     9     CHH     0      4
#> 4:   chr1      +    12     CHG     1      2
#> 5:   chr1      +    15     CHH     0      4

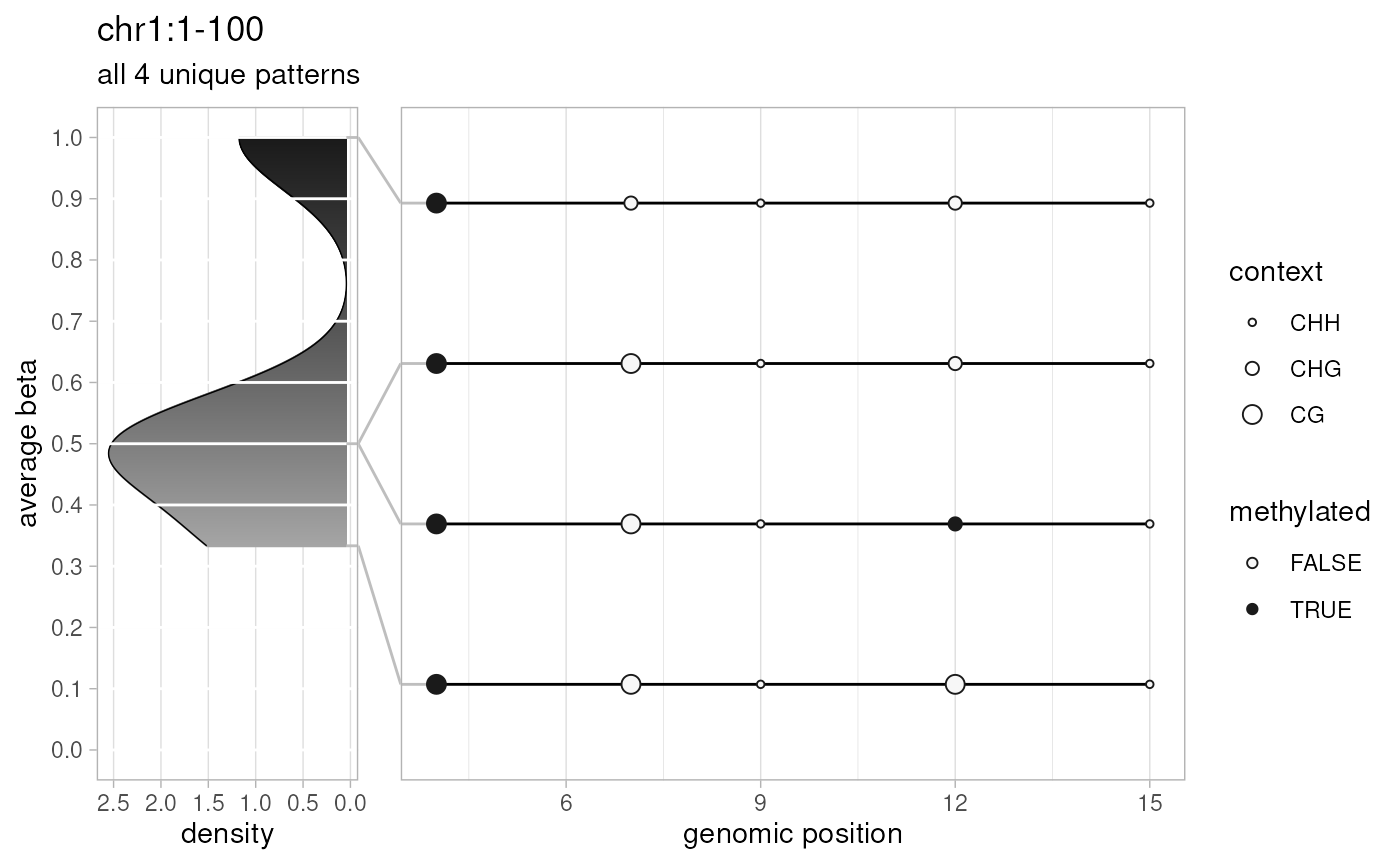

  # patterns plotted
  plotPatterns(
    extractPatterns(bam=temp.bam, bed=temp.bed, extract.context="CX"),
    plot.context="CX", npatterns.per.bin=Inf
  )
#> Checking BAM file:
#> short-read, single-end, unsorted alignment detected
#> Reading single-end BAM file
#> [0.002s]
#> Extracting methylation patterns
#> [0.008s]
#> 4 patterns supplied
#> 4 unique
#> 4 most frequent unique patterns were selected for plotting using 10 beta value bins:
#> [0,0.1) [0.1,0.2) [0.2,0.3) [0.3,0.4) [0.4,0.5) [0.5,0.6) [0.6,0.7) [0.7,0.8) [0.8,0.9) [0.9,1]
#>       0         0         0         1         0         2         0         0         0       1
